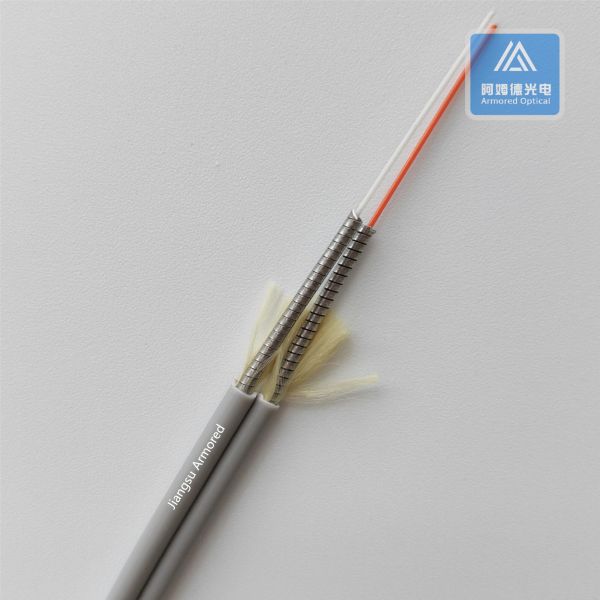

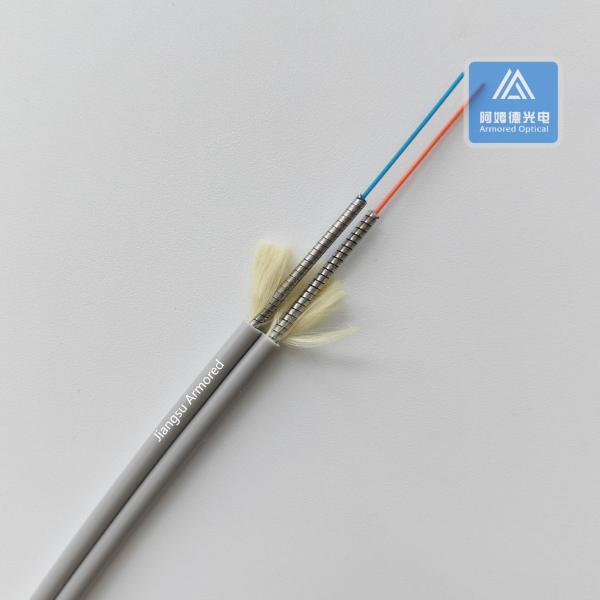

Duplex OM1 Flat Spiral Armored Fiber Cable 3.0mm x2pcs Grey PVC Rodent Resistant FTTH
Duplex OM1 Flat Spiral Armored Fiber Cable 3.0mm x2pcs Grey PVC Rodent Resistant FTTH
Micro Armored Fiber Cable, Spiral Armored Fiber Cable, Flexible Double Armored Armored Fiber Cable, Comply with ROHS
With metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords.
Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.
Armored fiber optical cable are available assembled with different lengths and connector types (like LC, SC, ST, FC),
making them adaptable to different networking and communications equipment.
Despite with metallic tube construction, armored patch cables are flexible enough and can be twist any direction.
| Item | Unit | Dimention | Remark |
| Optical fiber od | mm | 0.6 or 0.9 ± 0.05 | 2 pcs |
| Spiral armored tube OD | mm | 1.7 ± 0.1 | Stainless Steel |
| Aramid yarn | decitex | 1000D | |
| Outer jacket | mm | (3.0 ±0.1) *2pcs | PVC |
| Attenuation (Max.) | dB/km | SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm MM: 3.5dB/km@850nm, 1.5dB/km@1300nm |
| Temperature | ℃ | -20℃~+70℃ |
| Bend radius | mm | Dynamic 20D, Static 10D |
| Tensile | N | Max. 400 |
| Crush | N/10cm | Long-term 1000, short-term 2000 |
Other colors can be provided
Applications
- Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
- Used in communications in data center, during ODF with armored patch cord and pigtail
- Used in the open field, connections between optical equipment.
- Widely used in FTTH access network
- Telecommunication Network
- CCTV Network
- Data communications Network
- Local Area Network
- Optical pig-tails and Patch cord assembly
- Optical devices and equipment
Advantage
- The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
- Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
- The spiral armoured cable with good tension and pressure performance.
- The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.
Service
- 100% testing before shipment.
- Good prices can be provided.
- Our products can be customized according to customers’ requirement.
- Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
