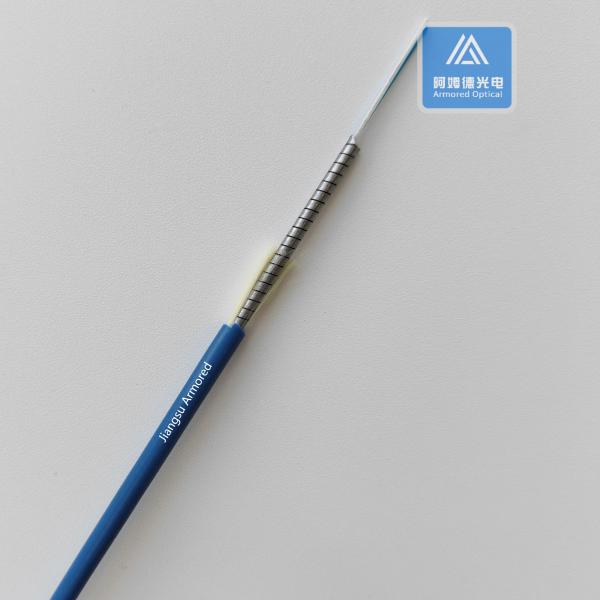

SM Duplex Fiber Optic Cable Armored 3.2mm Blue Pvc Rodent Resistant Flexible

Brand Name : JIANGSU ARMORED

Model Number : 1F-B1.3-V-3.2-Blue

Certification : ROHS

Place of Origin : CHINA

MOQ : 1000M

Price : Negociation

Payment Terms : T/T

Supply Ability : 100KM per Month

Delivery Time : TBA

Packaging Details : Plywood Drum and Pallet. By Sea or Air shipment

Name : Armored Fiber Cable

Fiber Counts : 2 Cores

Fiber Mode : Single Mode

Armored Tube Material : Stainless steel

Outer Diameter : 3.2mm

Outer Jacket Color : Blue

Outer jacket : PVC

Flame Rating : IEC60332-1-2, OFCR, or OFCP

Application : FTTH, Datacenter

Feature : Rodent Resistant

Contact Now

Duplex SM Armored Fiber Cable 3.2mm Blue PVC Rodent Resistant Flexbile Armored Fiber Cable FTTH

Duplex SM Armored Fiber Cable 3.2mm Blue PVC Rodent Resistant Flexbile Armored Fiber Cable FTTH

Spiral Armored Fiber Cable, Micro Armored Fiber Optical Cable, Flexbile Armored Fiber Cable,



  • Micro armored tube used to decrease the outer diameter and cable weight, also convenient for cabling and installation.
  • Micro armored fiber cable using high property aramid yarn, increasing tension property, and fit for long distance application.
  • Micro armored fiber cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
  • Different jacket material fit for different environments.
Item Unit Size Remark
Tight buffer Fiber mm 0.6 ±0.05 2pcs, PVC buffer
Spiral Armored Tube mm

OD: 2.0±0.1

 Stainless Steel
Aramid Yarn Dtex 1100D
Outer Jacket Diameter mm 3.2±0.1 PVC
Attenuation (Max.) dB/km

SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm

MM: 3.5dB/km@850nm, 1.5dB/km@1300nm
Temperature ℃ -20 ～ +70℃
Tensile (Max.) N 200
Crush (Max.) N/10cm Long-term 1000, short-term 2000
Rating   OFCR, OFCP

SM Duplex Fiber Optic Cable Armored 3.2mm Blue Pvc Rodent Resistant Flexible
SM Duplex Fiber Optic Cable Armored 3.2mm Blue Pvc Rodent Resistant Flexible




SM Duplex Fiber Optic Cable Armored 3.2mm Blue Pvc Rodent Resistant Flexible

SM Duplex Fiber Optic Cable Armored 3.2mm Blue Pvc Rodent Resistant Flexible



Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
  • Used in communications in data center, during ODF with armored patch cord and pigtail
  • Used in the open field, connections between optical equipment.
  • Widely used in FTTH access network
  • Telecommunication Network
  • CCTV Network
  • Data communications Network
  • Local Area Network
  • Optical pig-tails and Patch cord assembly
  • Optical devices and equipment



Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.



Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.
